在JT808协议的学习和调试过程中，一款终端模拟器非常重要，推荐 JT808 Terminal Simulator，官网下载地址：https://www.redisant.cn/jt808terminal

过程讲解 #

平台通过发送设置终端参数消息设置终端参数，终端回复终端通用应答消息。平台通过发送查询终端参数消息查询终端参数，终端回复查询终端参数应答消息。

此过程中使用的消息类别有：

  • 0x8103：设置终端参数
  • 0x8104：查询终端参数
  • 0x8106：查询指定终端参数
  • 0x0104：查询终端参数应答

使用模拟器 #

  1. 启动软件后，如果没有终端，则创建一个模拟终端，如何创建终端
  2. 点击启动终端按钮后，终端会立刻进行注册和鉴权

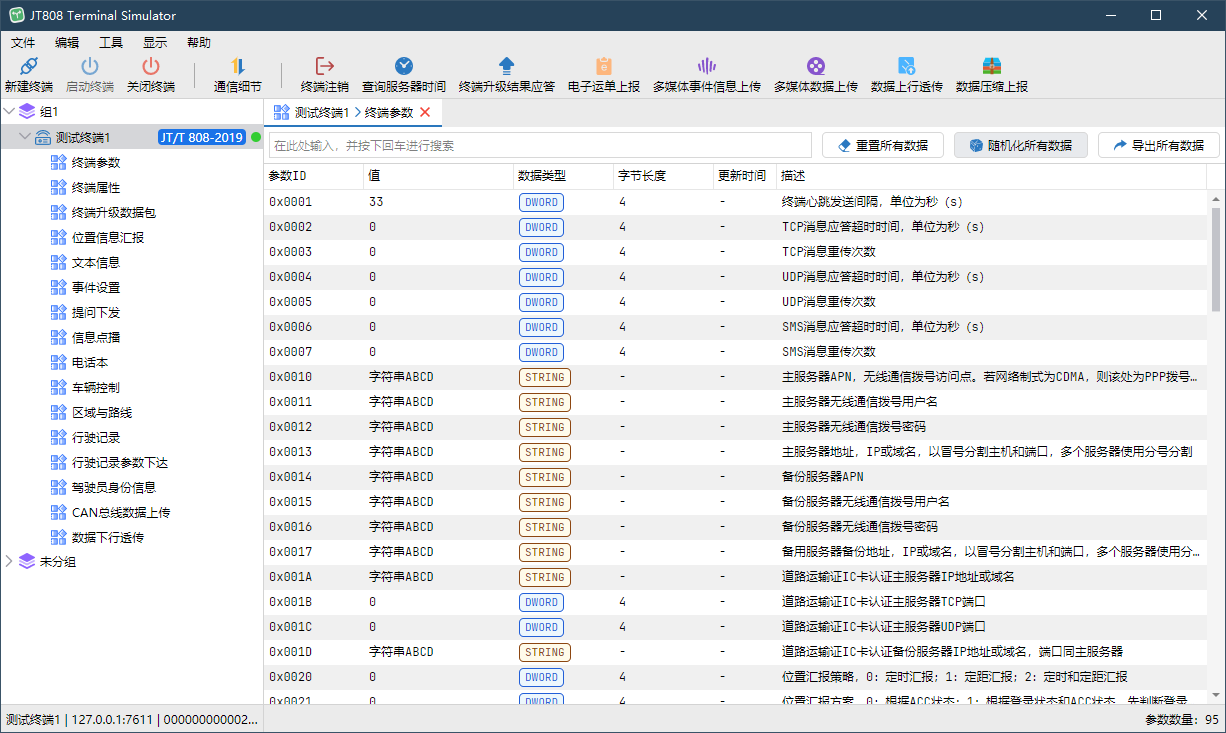

  3. 双击左侧终端参数，打开终端参数标签页

双击“值”列，可以随意修改参数值。

在软件的最上面一排按钮中，单击通信细节按钮，既可查看该过程中的所有消息。

平台发送设置终端参数消息 #

R <- 7E 81 03 41 14 01 00 00 00 00 00 02 23 45 67 89 00 03 0B 00 00 00 01 04 00 00 00 21 00 00 00 75 15 0A 0A 00 0A 0A 00 00 00 0A 00 00 00 00 00 00 00 00 00 00 0A 0A 00 00 00 76 07 0A 0A 00 0A 0A 00 00 00 00 00 77 16 01 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 79 03 00 00 00 00 00 00 7B 02 0A 0A 00 00 00 7C 04 0A 0A 0A 0A 00 00 F3 64 39 0A 00 0A 00 00 00 0A 0A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A 0A 00 0A 00 00 00 00 00 00 F3 65 3E 0B 00 0A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A 0A 0A 0A 0A 0A 0A 0A 0A 0A 00 00 F3 66 24 00 00 00 00 00 00 00 00 00 00 00 00 00 0A 00 0A 00 0A 00 0A 00 0A 00 0A 00 0A 00 0A 00 0A 00 00 00 00 00 00 00 00 F3 67 02 0A 0A 51 7E
T -> 7E 00 01 40 05 01 00 00 00 00 00 02 23 45 67 89 00 03 00 03 81 03 00 4D 7E

使用报文解析工具来解析原始报文（菜单栏 -> 工具 -> JT/T808-2019报文解析工具）：

{
  "消息头": {
    "协议版本号": 1,
    "消息ID": 33027,
    "消息体属性": {
      "版本标识": true,
      "是否分包": false,
      "数据加密方式": 0,
      "消息体长度": 276
    },
    "终端手机号": "00000000000223456789",
    "消息流水号": 3,
    "消息包封装项": null
  },
  "消息体": {
    "参数个数": 11,
    "参数列表": [
      {
        "参数ID": 1,
        "参数长度": 4,
        "参数值": "00000021"
      },
      {
        "参数ID": 117,
        "参数长度": 21,
        "参数值": "0A0A000A0A0000000A000000000000000000000A0A"
      },
      {
        "参数ID": 118,
        "参数长度": 7,
        "参数值": "0A0A000A0A0000"
      },
      {
        "参数ID": 119,
        "参数长度": 22,
        "参数值": "01010000000000000000000000000000000000000000"
      },
      {
        "参数ID": 121,
        "参数长度": 3,
        "参数值": "000000"
      },
      {
        "参数ID": 123,
        "参数长度": 2,
        "参数值": "0A0A"
      },
      {
        "参数ID": 124,
        "参数长度": 4,
        "参数值": "0A0A0A0A"
      },
      {
        "参数ID": 62308,
        "参数长度": 57,
        "参数值": "0A000A0000000A0A00000000000000000000000000000000000000000000000000000000000000000000000000000000000A0A000A00000000"
      },
      {
        "参数ID": 62309,
        "参数长度": 62,
        "参数值": "0B000A000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000A0A0A0A0A0A0A0A0A0A"
      },
      {
        "参数ID": 62310,
        "参数长度": 36,
        "参数值": "000000000000000000000000000A000A000A000A000A000A000A000A000A000000000000"
      },
      {
        "参数ID": 62311,
        "参数长度": 2,
        "参数值": "0A0A"
      }
    ]
  }
}

{
  "消息头": {
    "协议版本号": 1,
    "消息ID": 1,
    "消息体属性": {
      "版本标识": true,
      "是否分包": false,
      "数据加密方式": 0,
      "消息体长度": 5
    },
    "终端手机号": "00000000000223456789",
    "消息流水号": 3,
    "消息包封装项": null
  },
  "消息体": {
    "应答流水号": 3,
    "应答ID": 33027,
    "结果": 0
  }
}

平台查询终端参数 #

R <- 7E 81 04 40 00 01 00 00 00 00 00 02 23 45 67 89 00 14 5A 7E
T -> 7E 01 04 63 FF 01 00 00 00 00 00 02 23 45 67 89 00 10 00 02 00 01 00 14 5F 00 00 00 01 04 00 00 00 21 00 00 00 02 04 00 00 00 00 00 00 00 03 04 00 00 00 00 00 00 00 04 04 00 00 00 00 00 00 00 05 04 00 00 00 00 00 00 00 06 04 00 00 00 00 00 00 00 07 04 00 00 00 00 00 00 00 10 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 11 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 12 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 13 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 14 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 15 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 16 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 17 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 1A 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 1B 04 00 00 00 00 00 00 00 1C 04 00 00 00 00 00 00 00 1D 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 20 04 00 00 00 00 00 00 00 21 04 00 00 00 00 00 00 00 22 04 00 00 00 00 00 00 00 23 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 24 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 25 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 26 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 27 04 00 00 00 00 00 00 00 28 04 00 00 00 00 00 00 00 29 04 00 00 00 00 00 00 00 2C 04 00 00 00 00 00 00 00 2D 04 00 00 00 00 00 00 00 2E 04 00 00 00 00 00 00 00 2F 04 00 00 00 00 00 00 00 30 04 00 00 00 00 00 00 00 31 02 00 00 00 00 00 32 04 00 01 02 03 00 00 00 40 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 41 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 42 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 43 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 44 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 45 04 00 00 00 00 00 00 00 46 04 00 00 00 00 00 00 00 47 04 00 00 00 00 00 00 00 48 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 49 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 50 04 00 00 00 00 00 00 00 51 04 00 00 00 00 00 00 00 52 04 00 00 00 00 00 00 00 53 04 00 00 00 00 00 00 00 54 04 00 00 00 00 00 00 00 55 04 00 00 00 00 00 00 00 56 04 00 00 00 00 00 00 00 57 04 00 00 00 00 00 00 00 58 04 00 00 00 00 00 00 00 59 04 00 00 00 00 00 00 00 5A 04 00 00 00 00 00 00 00 5B 02 00 00 00 00 00 5C 02 00 00 00 00 00 5D 02 00 00 00 00 00 5E 02 00 00 00 00 00 64 04 00 00 00 00 00 00 00 65 04 00 00 00 00 00 00 00 70 04 00 00 00 00 00 00 00 71 04 00 00 00 00 00 00 00 72 04 00 00 00 00 00 00 00 73 04 00 00 00 00 00 00 00 74 04 00 00 00 00 00 00 00 80 04 00 00 00 00 00 00 00 81 02 00 00 00 00 00 82 02 00 00 00 00 00 83 0A D7 D6 B7 FB B4 AE 41 42 43 44 00 00 00 84 01 00 00 00 00 90 01 00 00 00 00 91 01 00 00 00 00 92 01 00 00 00 00 93 04 00 00 00 00 00 00 00 94 01 00 00 00 00 95 04 00 00 00 00 00 00 01 00 04 00 00 00 00 00 00 01 01 02 00 00 00 00 01 02 04 00 00 00 00 00 00 01 03 02 00 00 00 00 01 10 08 00 01 02 03 04 05 06 07 00 00 01 11 08 00 01 02 03 04 05 06 07 00 00 00 75 15 0A 0A 00 0A 0A 00 00 00 0A 00 00 00 00 00 00 00 00 00 00 0A 0A 00 00 00 76 07 0A 0A 00 0A 0A 00 00 00 00 00 77 16 01 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 79 03 00 00 00 00 00 00 7B 02 0A 0A 00 00 00 7C 04 0A 0A 0A 0A 00 00 F3 64 39 0A 00 0A 00 00 00 0A 0A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A 0A 00 0A 00 54 7E
T -> 7E 01 04 60 76 01 00 00 00 00 00 02 23 45 67 89 00 10 00 02 00 02 00 00 00 00 00 F3 65 3E 0B 00 0A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A 0A 0A 0A 0A 0A 0A 0A 0A 0A 00 00 F3 66 24 00 00 00 00 00 00 00 00 00 00 00 00 00 0A 00 0A 00 0A 00 0A 00 0A 00 0A 00 0A 00 0A 00 0A 00 00 00 00 00 00 00 00 F3 67 02 0A 0A 0C 7E

使用报文解析工具来解析原始报文（菜单栏 -> 工具 -> JT/T808-2019报文解析工具）：

{
  "消息头": {
    "协议版本号": 1,
    "消息ID": 33028,
    "消息体属性": {
      "版本标识": true,
      "是否分包": false,
      "数据加密方式": 0,
      "消息体长度": 0
    },
    "终端手机号": "00000000000223456789",
    "消息流水号": 20,
    "消息包封装项": null
  },
  "消息体": {}
}

平台查询指定终端参数 #

R <- 7E 81 06 40 09 01 00 00 00 00 00 02 23 45 67 89 00 0D 02 00 00 00 01 00 00 00 02 49 7E
T -> 7E 01 04 40 15 01 00 00 00 00 00 02 23 45 67 89 00 0C 00 0D 02 00 00 00 01 04 00 00 00 21 00 00 00 02 04 00 00 00 00 FA 7E

使用报文解析工具来解析原始报文（菜单栏 -> 工具 -> JT/T808-2019报文解析工具）：

{
  "消息头": {
    "协议版本号": 1,
    "消息ID": 33030,
    "消息体属性": {
      "版本标识": true,
      "是否分包": false,
      "数据加密方式": 0,
      "消息体长度": 9
    },
    "终端手机号": "00000000000223456789",
    "消息流水号": 13,
    "消息包封装项": null
  },
  "消息体": {
    "参数总数": 2,
    "参数ID列表": [
      1,
      2
    ]
  }
}

{
  "消息头": {
    "协议版本号": 1,
    "消息ID": 260,
    "消息体属性": {
      "版本标识": true,
      "是否分包": false,
      "数据加密方式": 0,
      "消息体长度": 21
    },
    "终端手机号": "00000000000223456789",
    "消息流水号": 12,
    "消息包封装项": null
  },
  "消息体": {
    "应答流水号": 13,
    "参数个数": 2,
    "参数列表": [
      {
        "参数ID": 1,
        "参数长度": 4,
        "参数值": "00000021"
      },
      {
        "参数ID": 2,
        "参数长度": 4,
        "参数值": "00000000"
      }
    ]
  }
}

消息格式 #

使用到的消息格式

0x8103：设置终端参数 #

起始字节 字段 数据类型 描述及要求
0 参数总数 BYTE 参数项的个数
1 参数项列表 参数项列表

参数项数据格式：

字段 数据类型 描述及要求
参数ID DWORD 参数ID
参数长度 BYTE 参数值字节长度
参数值 参数值

常见的参数ID如下，全部参数查询标准文档8.12章节：

参数ID 数据类型 描述及要求
0x0001 DWORD 终端心跳发送间隔,单位为秒(s)
0x0002 DWORD TCP 消息应答超时时间,单位为秒(s)
0x0003 DWORD TCP 消息重传次数
0x0004 DWORD UDP消息应答超时时间,单位为秒(s)
0x0005 DWORD UDP 消息重传次数
0x0006 DWORD SMS消息应答超时时间,单位为秒(s)
0x0007 DWORD SMS 消息重传次数

0x8104：查询终端参数 #

消息体为空

0x8106：查询指定终端参数 #

起始字节 字段 数据类型 描述及要求
0 参数总数 BYTE
1 参数ID列表 BYTE[4*n] 参数顺序排列，n为参数总数，单个参数ID占4字节

0x0104：查询终端参数应答 #

起始字节 字段 数据类型 描述及要求
0 应答流水号 WORD 对应的终端参数查询消息的流水号
2 应答参数个数 BYTE
3 参数项列表
